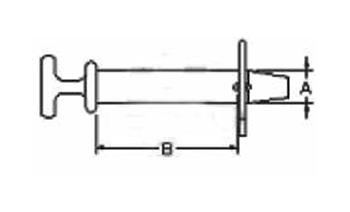

T-Handle Clevis Pins
For Use with straight & twisted clevises. Made from high tensile steel and heat treated to grade 5 specification. Drop forged one piece. Clip pin is included. Yellow zinc dichromate plated.
| Part No. | Pin Hole | Usable Length | Pin Hole | Usable Length | WEIGHT |
| Size(A) mm | (B) mm | Size(A)inch | (B)inch | IN KG. | |
| HB THP 56001 | 12.7 | 57 | 0.5 | 2.244 | 0.1 |
| HB THP 56002 | 16 | 79 | 0.63 | 3.11 | 0.208 |
| HB THP 56003 | 19 | 83 | 0.748 | 3.268 | 0.29 |
| HB THP 56004 | 22 | 95 | 0.866 | 3.74 | 0.476 |
| HB THP 56005 | 25.4 | 108 | 1 | 4.252 | 0.68 |

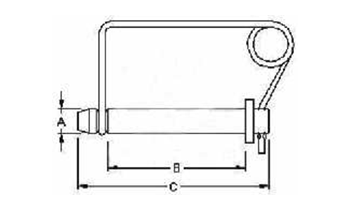

Safety Lock Hitch Pins
Medium carbon steel forged Hitch pins with Spring Steel wire lock handle to hold pin in place. Yellow zinc dichromate plated.
| Part No. | Pin Hole Size | Usable Length | Overal Length | Pin Hole Size | Usable Length | Overal Length | WEIGHT |
| (A)mm | (B)mm | (C) mm | (A)inch | (B)inch | (C) inch | IN KG. | |
| HB LHP 57001 | 12.7 | 108 | 152 | 0.5 | 4.25 | 5.98 | 0.22 |
| HB LHP 57002 | 16 | 108 | 152 | 0.63 | 4.25 | 5.98 | 0.318 |
| HB LHP 57003 | 19 | 108 | 152 | 0.75 | 4.25 | 5.98 | 0.415 |
| HB LHP 57004 | 19 | 159 | 203 | 0.75 | 6.26 | 7.99 | 0.532 |
| HB LHP 57005 | 22 | 159 | 203 | 0.87 | 6.26 | 7.99 | 0.694 |
| HB LHP 57006 | 25.4 | 159 | 203 | 1 | 6.26 | 7.99 | 0.864 |
