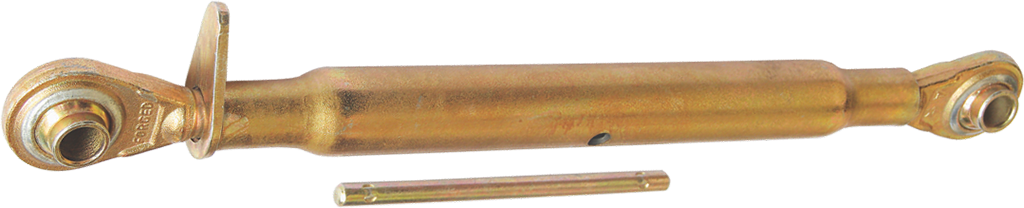

Standard Top Link Assembly
Standard Duty Top Links in Cat 0,1, 1&2 Combination, 2&3 Sizes. Yellow Zinc Dichromate Plated Centre Tube and Clear Zinc Plated Repair Ends Unless Otherwise Specified.

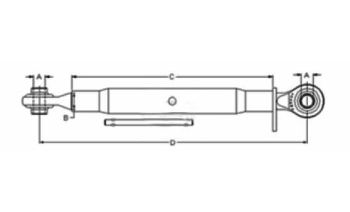

| Part No. | CAT | Tube Length | Tube Length | Thread Size | LH | RH | Min/ Max. |
| (d1 - d2) | (A) INCHES | (A) MM | (B) | Ball Id/ Height | Ball Id/ Height | (E) | |
| D1/H1 | D2/H2 | ||||||
| HBTLA 1001 | 0-0 | 7-1/2 | 190 | 3/4 UNC | 16/25.4 | 16/25.4 | 265/385 |
| HBTLA 1002 | 0-0 | 9-3/4 | 248 | 3/4 UNC | 16/25.4 | 16/25.4 | 325-470 |
| HBTLA 1003 | 1-1 | 7 | 178 | 1-1/8 UNC | 19/44 | 19/44 | 290-370 |
| HBTLA 1004 | 1-2 | 7 | 178 | 1-1/8 UNC | 19/44 | 25.4/51 | 295-375 |
| HBTLA 1005 | 2-2 | 7 | 178 | 1-1/8 UNC | 25.4/51 | 25.4/51 | 300-380 |
| HBTLA 1006 | 1-1 | 9 | 229 | 1-1/8 UNC | 19/44 | 19/44 | 340-470 |
| HBTLA 1007 | 1-2 | 9 | 229 | 1-1/8 UNC | 19/44 | 25.4/51 | 345-475 |
| HBTLA 1008 | 2-2 | 9 | 229 | 1-1/8 UNC | 25.4/51 | 25.4/51 | 350-480 |
| HBTLA 1009 | 1-1 | 11-1/4 | 285 | 1-1/8 UNC | 19/44 | 19/44 | 395-480 |
| HBTLA 1010 | 1-2 | 11-1/4 | 285 | 1-1/8 UNC | 19/44 | 25.4/51 | 400-585 |
| HBTLA 1011 | 2-2 | 11-1/4 | 285 | 1-1/8 UNC | 25.4/51 | 25.4/51 | 405-590 |
| HBTLA 1012 | 1-1 | 13 | 330 | 1-1/8 UNC | 19/44 | 25.4/51 | 440-665 |
| HBTLA 1013 | 1-2 | 13 | 330 | 1-1/8 UNC | 19/44 | 25.4/51 | 445-665 |
| HBTLA 1014 | 2-2 | 13 | 330 | 1-1/8 UNC | 25.4/51 | 25.4/51 | 450-680 |
| HBTLA 1015 | 1-1 | 14-1/2 | 370 | 1-1/8 UNC | 19/44 | 19/44 | 480-695 |
| HBTLA 1016 | 1-2 | 14-1/2 | 370 | 1-1/8 UNC | 19/44 | 25.4/51 | 485-720 |
| HBTLA 1017 | 2-2 | 14-1/2 | 370 | 1-1/8 UNC | 25.4/51 | 25.4/51 | 490-760 |
| HBTLA 1018 | 1-1 | 16 | 406 | 1-1/8 UNC | 19/44 | 19/44 | 515-730 |
| HBTLA 1019 | 1-2 | 16 | 406 | 1-1/8 UNC | 19/44 | 25.4/51 | 520-765 |
| HBTLA 1020 | 2-2 | 16 | 406 | 1-1/8 UNC | 25.4/51 | 25.4/51 | 525-800 |
| HBTLA 1021 | 1-1 | 17-1/4 | 438 | 1-1/8 UNC | 19/44 | 19/44 | 745-760 |
| HBTLA 1022 | 1-2 | 17-1/4 | 438 | 1-1/8 UNC | 19/44 | 25.4/51 | 550-795 |
| HBTLA 1023 | 2-2 | 17-1/4 | 438 | 1-1/8 UNC | 25.4/51 | 25.4/51 | 555-830 |
| HBTLA 1024 | 1-1 | 20 | 508 | 1-1/8 UNC | 19/44 | 19/44 | 615-830 |
| HBTLA 1025 | 1-2 | 20 | 508 | 1-1/8 UNC | 19/44 | 25.4/51 | 620-865 |
| HBTLA 1026 | 2-2 | 20 | 508 | 1-1/8 UNC | 25.4/51 | 25.4/51 | 625-900 |
| HBTLA 1027 | 1-1 | 24 | 610 | 1-1/8 UNC | 19/44 | 19/44 | 715-930 |
| HBTLA 1028 | 1-2 | 24 | 610 | 1-1/8 UNC | 19/44 | 25.4/51 | 720-965 |
| HBTLA 1029 | 2-2 | 24 | 610 | 1-1/8 UNC | 25.4/51 | 25.4/51 | 725-1000 |
| HBTLA 1030 | 2-2 | 15 | 381 | 1-1/4 UNC | 25.4/51 | 25.4/51 | 510-785 |
| HBTLA 1031 | 2-2 | 19 | 483 | 1-1/4 UNC | 25.4/51 | 25.4/51 | 610-885 |
| HBTLA 1032 | 2-2 | 15 | 381 | 1-3/8 UNC | 25.4/51 | 25.4/51 | 540-830 |
| HBTLA 1033 | 2-2 | 19 | 483 | 1-3/8 UNC | 25.4/51 | 25.4/51 | 640-915 |
| HBTLA 1034 | 3-3 | 19 | 483 | 1-3/8 UNC | 32/51 | 32/51 | 640-915 |
