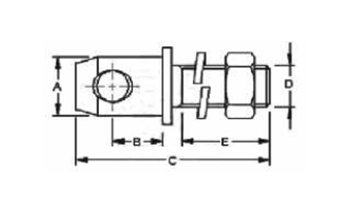

Stabilizer Pins
Stabilizer Pins for a Variety of Tractors and Stabilizer Kits. Available with or without the Nut and Spring Washer.Yellow Zinc Dichromate Plated.
| Part No. | A(mm) | (B)mm | (C)mm | (D) Thread | (E)mm | WEIGHT IN KG. |
| HB SP 54001 | 19 | 16 | 70 | 3/4" UNF | 28 | 0.201 |
| HB SP 54002 | 22 | 17 | 68 | 5/8" UNF | 28 | 0.174 |
| HB SP 54003 | 22 | 17 | 68 | 5/8" UNF | 28 | 0.129 |
| HB SP 54004 | 22 | 17 | 87 | 3/4" UNF | 28 | 0.188 |
| HB SP 54005 | 22 | 31 | 76 | 5/8" UNF | 27 | 0.2 |
| HB SP 54006 | 22 | 31 | 76 | 5/8" UNF | 27 | 0.196 |
| HB SP 54007 | 22 | 13 | 67 | 5/8" UNF | 28 | 0.168 |
| HB SP 54008 | 22 | 13 | 67 | 5/8" UNF | 28 | 0.126 |
| HB SP 54009 | 22 | 19 | 73 | 5/8" UNF | 34 | 0.179 |
| HB SP 54010 | 22 | 16 | 67 | 5/8" UNF | 30 | 0.161 |
| HB SP 54011 | 22 | 19 | 114 | 5/8" UNF | 25.4 | 0.3 |
| HB SP 54012 | 22 | 19 | 69 | 5/8" UNF | 28 | 0.13 |
| HB SP 54013 | 22 | 22 | 103 | 3/4" UNF | 57 | 0.694 |
| HB SP 54014 | 22 | 22 | 103 | 3/4" UNF | 57 | 0.4 |
| HB SP 54015 | 22 | 17 | 83 | 3/4" UNF | 28 | 0.28 |

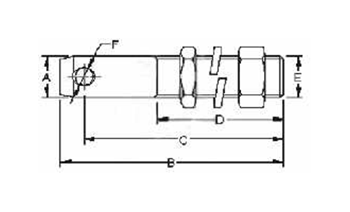

Adjustable Lift Arm Pins
Available in a Variety of Sizes in Cat 1 and Cat 2 with Adjustable Usable Length.Yellow Zinc Dichromate Plated.
| Part No. | CAT | A(mm) | (B)mm | (C)mm | (D) mm | E | (F)mm | WEIGHT IN KG. |
| HB ALP 55001 | 0 | 16 | 102 | 89 | 56 | 5/8"UNF | 7 | 0.2 |
| HB ALP 55002 | 0-1 | 22 | 114 | 102 | 51 | 5/8" UNF | 12 | 0.26 |
| HB ALP 55003 | 1-0 | 16 | 117 | 107 | 67 | 7/8" UNF | 7 | 0.937 |
| HB ALP 55004 | 1-0 | 16 | 127 | 113 & 122 | 57 | 7/8" UNF | 7 & 4 | 0.25 |
| HB ALP 55005 | 1 | 22 | 83 | 72 | 51 | 7/8" UNF | 12 | 0.332 |
| HB ALP 55006 | 1 | 22 | 108 | 69 | 43 | 7/8" UNF | 12 | 0.4 |
| HB ALP 55007 | 1 | 22 | 135 | 116 | 70 | 7/8" UNF | 12 | 0.512 |
| HB ALP 55008 | 1 | 22 | 160 | 143 | 86 | 7/8" UNF | 12 | 0.542 |
| HB ALP 55009 | 1 | 22 | 190 | 178 | 124 | 7/8" UNF | 12 | 0.632 |
| HB ALP 55010 | 1-2 | 28 | 133 | 116 | 65 | 7/8" UNF | 12 | 0.62 |
| HB ALP 55011 | 2 | 28 | 152 | 79 | 73 | 1" UNC | 12 | 0.807 |
| HB ALP 55012 | 2 | 28 | 152 | 136 | 76 | 1-1/8" UNC | 12 | 0.954 |
| HB ALP 55013 | 2 | 28 | 152 | 136 | 86 | 1-1/8" UNF | 12 | 1.032 |
| HB ALP 55014 | 2 | 28 | 190 | 171 | 114 | 1-1/8" UNF | 12 | 1.132 |
| HB ALP 55015 | 2-3 | 36.5 | 165 | 146 | 89 | 1-1/8" UNF | 12 | 1.24 |
