PTO Locking Pins Round
Our range of PTO lock pins can be used for farm and lawn tractors. These pins have forged body and made up of spring steel wire loop. The automatic locking system ensures highest level safety and convenience during assembly. Yellow zinc dichromate plating ensures durability and long life. We can offer PTO lock pins in different specifications based upon the requirements of the clients.

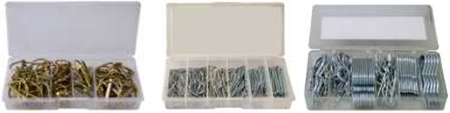

*Special Packaging: We Provide these goods with Barcode Labels / Single / Two Piece Pack / Bulk Case Packaging / Barcode Flag Labels / Assortments.

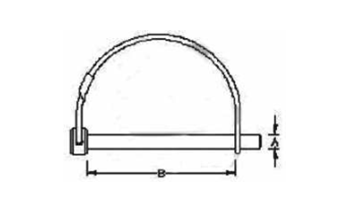

| Part No. | A | B | Ship Weight | ||
| inch | mm | inch | mm | In Kg. | |
| HB PR 84001 | 1/4 | 6 | 1-3/8 | 35 | 0.028 |
| HB PR 84002 | 1/4 | 6 | 1-3/4 | 45 | 0.028 |
| HB PR 84003 | 1/4 | 6 | 2-1/2 | 63 | 0.031 |
| HB PR 84004 | 5/16 | 8 | 1-1/4 | 32 | 0.027 |
| HB PR 84005 | 5/16 | 8 | 1-3/8 | 35 | 0.036 |
| HB PR 84006 | 5/16 | 8 | 1-3/4 | 45 | 0.036 |
| HB PR 84007 | 3/8 | 9.5 | 1-1/2 | 38 | 0.05 |
| HB PR 84008 | 3/8 | 9.5 | 1-3/4 | 45 | 0.07 |
| HB PR 84009 | 3/8 | 9.5 | 2-27/32 | 72 | 0.075 |
| HB PR 84010 | 3/8 | 9.5 | 2-1/2 | 63 | 0.08 |
| HB PR 84011 | 7/16 | 11 | 3-9/16 | 90 | 0.105 |
| HB PR 84012 | 7/16 | 11 | 2-27/32 | 72 | 0.095 |
| HB PR 84013 | 0.394 | 10 | 1.575 | 40 | 0.062 |
| HB PR 84014 | 0.315 | 8 | 1.378 | 35 | 0.035 |
| HB PR 84015 | 1/4 | 6 | 2 | 51 | 0.026 |
| HB PR 84016 | 1/4 | 6 | 2-1/4 | 57 | 0.031 |
| HB PR 84017 | 5/16 | 8 | 1-11/16 | 43 | 0.036 |
| HB PR 84018 | 5/16 | 8 | 2-1/2 | 63 | 0.07 |
| HB PR 84019 | 3/8 | 9.5 | 2-1/4 | 57 | 0.058 |
| HB PR 84020 | 1/4 | 6 | 1-7/8 | 48 | 0.03 |
| HB PR 84021 | 3/8 | 10 | 2-1/4 | 56 | 0.061 |
| HB PR 84022 | 0.32 | 8 | 2.244 | 57 | 0.043 |
| HB PR 84023 | 0.39 | 10 | 2.244 | 57 | 0.06 |
