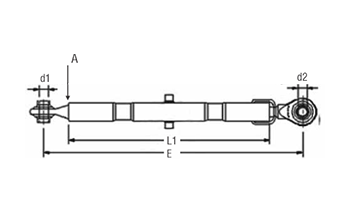

MF Top Link Assembly
| Part No. | CAT. | Tube Length | Thread Size" | MIN. - MAX |
| d1 - d2 | L1 | A | E | |
| HB TLA 4001 | 1-1 | 438 | 1"1/16 UNF | 590-750 |
| HB TLA 4002 | 1-1 | 476 | 1"1/16 UNF | 610-770 |
| HB TLA 4003 | 1-2 | 476 | 1"1/16 UNF | 610-770 |
| HB TLA 4004 | 1-1 | 546 | 1"1/16 UNF | 670-830 |
| HB TLA 4005 | 1-2 | 546 | 1"1/16 UNF | 670-830 |
| HB TLA 4006 | 2-2 | 546 | 1"1/16 UNF | 670-830 |

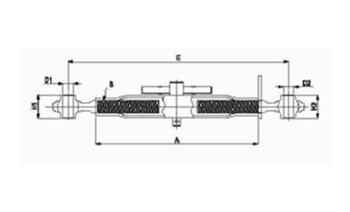

Top Link Assembly Zetor/ Ursus
| Part No. | Tube Length | Thread Size | Ball Id/ Height | Ball Id/ Height | Min/ Max. |
| A | B | D1/H1 | D2/H2 | E | |
| HB TLA 5001 | 400 | M27 X 3 | 25.40/44.00 | 25.40/44.00 | 520-770 |
| HB TLA 5002 | 400 | M27 X 3 | 25.40/51.00 | 25.40/44.00 | 520-770 |
| HB TLA 5003 | 430 | M27 X 3 | 25.40/51.00 | 25.40/51.00 | 550-800 |
| HB TLA 5004 | 430 | M27 X 3 | 25.40/51.00 | 19.00/44.00 | 545-770 |
| HB TLA 5005 | 330 | M27 X 3 | 25.40/51.00 | 25.40/51.00 | 450-680 |
| HB TLA 5006 | 470 | M30 X 3 | 25.40/51.00 | 25.40/51.00 | 590-830 |
| HB TLA 5007 | 470 | M36 X 3 | 32.00/51.00 | 25.40/51.00 | 610-875 |

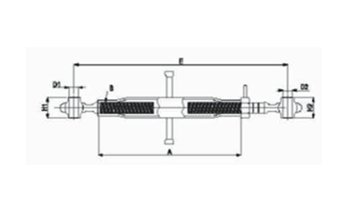

Top Link Assembly (DEUTZ)
| Part No. | Tube Length | Thread Size | Ball Id/ Height | Ball Id/ Height | Min/ Max. |
| A | B | D1/H1 | D2/H2 | E | |
| HB TLA 6001 | 340 | M27 X 2 | 25.40/51.00 | 25.40/51.00 | 595-815 |

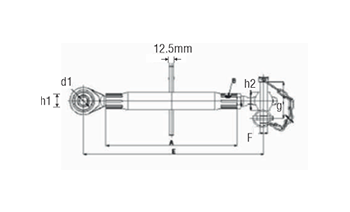

Top Link Assembly MTZ-UMZ
| Part No. | Tube Length | Thread Size | Ball Id/ Height | Ball Id/ Height | Min/ Max. | Pin |
| A | B | D1/H1 | D2/H2 | E | F/G | |
| HB TLA 7001 | 360 | M30 TPZ | 22.10-51.00 | 22.10-51.00 | 495-715 | 22 X 100 RHS |
| HB TLA 7002 | 360 | M30 TPZ | 25.40/51.00 | 25.40/51.00 | 495-715 | 25 X 100 RHS |
