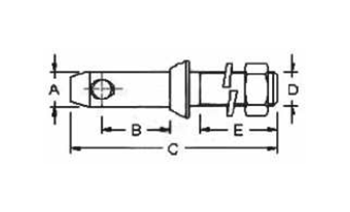

Forged Lift Arm Pin
Available in a Variety of Sizes from Cat 0 to Cat 3. Yellow Zinc Dichromate Plated.
| Part No. | CAT | A(mm) | (B)mm | (C)mm | (D)mm | (E)mm | WEIGHT IN KG. |
| HB LAP 52001 | 1 | 22 | 25.4 | 110 | 7/8"UNF | 41 | 0.48 |
| HB LAP 52002 | 1 | 22 | 19 | 121 | 5/8" UNF | 19 | 0.382 |
| HB LAP 52003 | 1 | 22 | 51 | 137 | 5/8" UNF | 35 | 0.397 |
| HB LAP 52004 | 1 | 22 | 51 | 137 | 7/8" UNF | 41 | 0.502 |
| HB LAP 52005 | 1 | 22 | 51 | 137 | 3/4" UNF | 48 | 0.435 |
| HB LAP 52006 | 1 | 22 | 51 | 144 | 1" UNF | 51 | 0.61 |
| HB LAP 52007 | 1 | 22 | 51 | 145 | 1-1/8" UNF | 60 | 0.712 |
| HB LAP 52008 | 1 | 22 | 51 | 146 | 7/8" UNF | 35 | 0.572 |
| HB LAP 52009 | 1 | 22 | 51 | 146 | 7/8" UNF | 35 | 0.49 |
| HB LAP 52010 | 1 | 22 | 51 | 146 | 1-1/8" UNC | 51 | 0.755 |
| HB LAP 52011 | 1 | 22 | 51 | 148 | 7/8" UNF | 53 | 0.517 |
| HB LAP 52012 | 1 | 22 | 52 | 138 | M20 | 39 | 0.457 |
| HB LAP 52013 | 1 | 22 | 64 | 163 | 7/8" UNF | 58 | 0.578 |
| HB LAP 52014 | 2 | 28 | 51 | 141 | 3/4" UNF | 35 | 0.637 |
| HB LAP 52015 | 2 | 28 | 51 | 146 | 1-1/8" UNF | 51 | 0.748 |
| HB LAP 52016 | 2 | 28 | 57 | 163.5 | 1-1/8" UNF | 60 | 0.988 |
| HB LAP 52017 | 2 | 28 | 60 | 137 | 7/8" UNF | 35 | 0.679 |
| HB LAP 52018 | 2 | 28 | 60 | 144 | 7/8" UNF | 40 | 0.702 |
| HB LAP 52019 | 2 | 28 | 60 | 149 | 3/4" UNF | 54 | 0.643 |
| HB LAP 52020 | 2 | 28 | 60 | 149 | 7/8" UNF | 35 | 0.759 |
| HB LAP 52021 | 2 | 28 | 60 | 149 | 1" UNF | 51 | 0.82 |

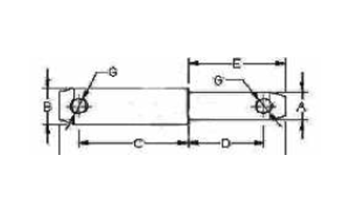

Dual Category Pins
| Part No. | A(mm) | (B)mm | (C)mm | (D)mm | (E)mm | (F)mm | (G)mm | WEIGHT IN KG. |
| HB TLP 53001 | 16 | 22 | - | 53 | 60 | 85 | 5 | 0.082 |
| HB TLP 53002 | 19 | 25.4 | - | 100 | 111 | 175 | 12 | 0.84 |
| HB TLP 53003 | 22 | 28 | 60 | 87 | 105 | 181 | 12 | 0.631 |
| HB TLP 53004 | 22 | 28 | 60 | 87 | 105 | 181 | 12 | 0.602 |
| HB TLP 53005 | 22 | 28 | 60 | 50 | 65 | 140 | 12 | 0.6 |
| HB TLP 53006 | 22 | 28 | 62 | 85 | 105 | 190 | 12 | 0.675 |
| HB TLP 53007 | 22 | 28 | 87 | 60 | 78 | 181 | 12 | 0.67 |
| HB TLP 53008 | 22 | 28 | 113 | 60 | 78 | 206 | 12 | 0.354 |
| HB TLP 53009 | 35 | 40 | 132 | 31 | 47 | 195 | 12 | 1.722 |
| HB TLP 53010 | 21.6 | 28.5 | 109.5 | 87 | 100 | 220.726 | 12 | 0.909 |
| HB TLP 53011 | 28 | 22 | - | 104 | 118 | 208 | 12 | 0.795 |
