JACKS
The Jacks form the basic foundation of a scaffold system & their function is to provide adjustability to the system as well as bear the basic load of the system they can be used at the top & bottom using attachments base plate & fork head.
The Jacks are being produced in different sizes as per customer requirement: They can be solid(Threaded Rods) & Hollow (Threaded Tubes).Rolled acme Thread are provided to ensure good load bearing capacity.

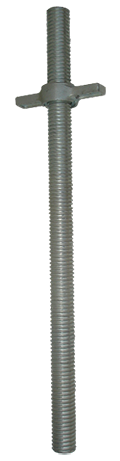

Universal Jack

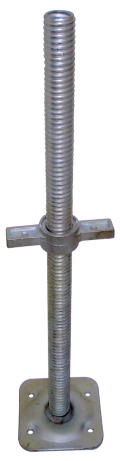

Adjustable Base Jack Pipe
OD 38 mm
Adjustable U-Head
X: 350, 450, 550
Y: 300, 400, 500
Z: 75, 100
BASE JACK
Specification
| Solid | ||
| Diameter | Length | |
| A | B | |
| 38mm | 750mm | 650mm |
| 36mm | 650mm | 550mm |
| 32mm | 550mm | 450mm |
| Hollow | |||
| Diameter | TH | Length | |
| A | B | ||
| 38mm | 4mm | 750mm | 650mm |
| 3.6mm |
650mm | 550mm | |
| 3.2mm | 600mm | 500mm | |

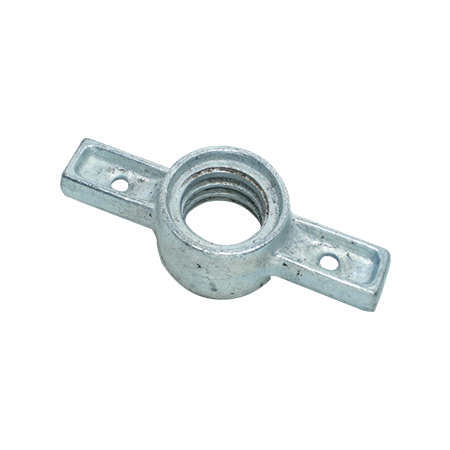

Jack Nut Small
For Pipe 48.3mm (Malleable, Forged or S.G. Cast Iron) Inner Diameter For Jacks outer dia: 32mm, 34mm, 36mm, 38mm

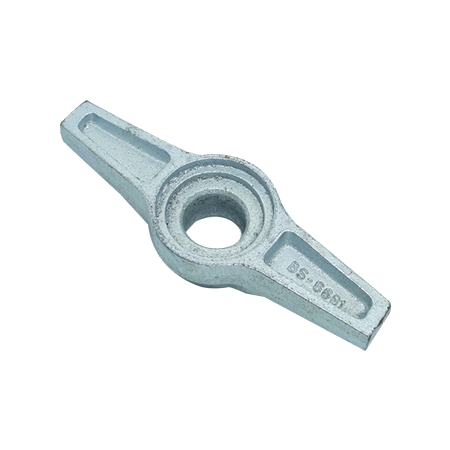

Jack Nut Big
For Pipe 48.3 & 60.3mm

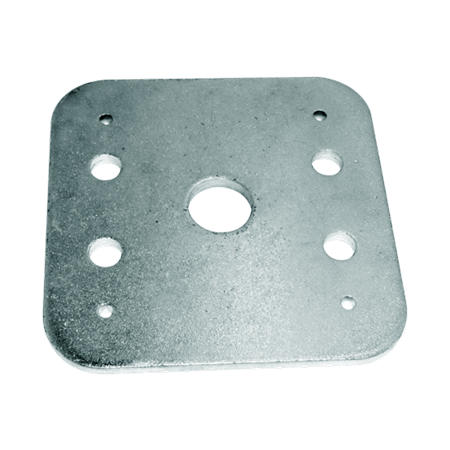

Base Plate
150 X 150, 120 X 120
Thickness : 5mm To 9mm
