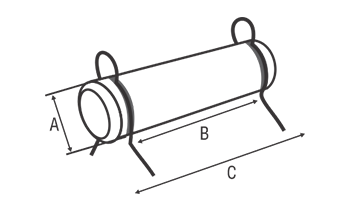

Hydraulic Cylinder Pins
Pins in Various Lengths for Hydraulic Cylinders and Jacks. Clip Pins Included. Yellow Zinc Dichromate Plated
| Part Number | (A)mm | (B)mm | (C) mm | (A)inch | (B)inch | (C) inch | WEIGHTÂ IN KG. |
| HB CP 58001 | 25.4 | 52 | 71 | 1" | 2-1/32" | 2-13/16" | 0.29 |
| HB CP 58002 | 25.4 | 70 | 90 | 1 | 2-3/4" | 3-9/16" | 0.345 |
| HB CP 58003 | 25.4 | 79 | 100 | 1 | 3-1/8" | 3-15/16" | 0.372 |
| HB CP 58004 | 25.4 | 86 | 102 | 1 | 3-3/8" | 4" | 0.4 |
| HB CP 58005 | 28 | 50 | 71 | 1-1/8" | 1-31/32" | 2-13/16" | 0.33 |
| HB CP 58006 | 19.05 | 42.3 | 83 | 3/4 | 1/2/2003 | 3/19/1971 | 0.135 |
| HB CP 58007 | 19 | 65 | 72 | 3/4 | 2-52/93 | 2/5/2006 | 0.158 |
| HB CP 58008 | 25.4 | 65 | 80.95 | 1 | 2-52/93 | 3/3/2016 | 0.31 |
| HB CP 58009 | 19.8 | 53 | 61 | 7/9 | 2/2/2023 | 2/2/2005 | 0.125 |
| HB CP 58010 | 25.4 | 70 | 84.5 | 1 | 2-65/86 | 3/17/1952 | 0.323 |
| HB CP 58011 | 25.4 | 63.5 | 79 | 1 | 2/1/2002 | 3/1/2009 | 0.3 |

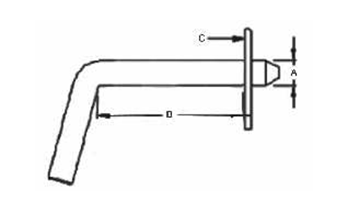

Bent Hitch Pins
"For Use with Farm & Lawn Tractors. Also Used on Snow Plows & Other Industrial Applications. Clip Pin is included. Yellow Zinc Dichromate Plated."
| Part Number | (A)mm | (B)mm | (A)inch | (B)inch | WEIGHTÂ IN KG. |
| HB BHP 59001 | 12.700 | 76 | 1/2 | 3 | 0.153 |
| HB BHP 59002 | 12.700 | 76 | 1/2 | 3 | 0.16 |
| HB BHP 59003 | 12.700 | 102 | 1/2 | 4 | 0.18 |
| HB BHP 59004 | 12.700 | 92 | 1/2 | 3-5/8 | 0.155 |
| HB BHP 59005 | 16.000 | 76 | 5/8 | 3 | 0.24 |
| HB BHP 59006 | 19.000 | 108 | 3/4 | 4-1/4 | 0.47 |
| HB BHP 59007 | 19.000 | 89 | 3/4 | 3-1/2 | 0.38 |
| HB BHP 59008 | 15.621 | 85.852 | 8/13 | 3-19/50 | 0.22 |
| HB BHP 59009 | 15.621 | 85.852 | 8/13 | 3-19/50 | 0.217 |
| HB BHP 59010 | 15.621 | 85.852 | 8/13 | 3-19/50 | 0.22 |
| HB BHP 59011 | 12.446 | 60.477 | 24/49 | 2-8/21 | 0.211 |
| HBBHP 59012 | 12.446 | 60.477 | 24/49 | 2-8/21 | 0.114 |
| HB BHP 59013 | 12.446 | 60.477 | 24/49 | 2-8/21 | 0.11 |
| HB BHP 59014 | 15.621 | 85.852 | 8/13 | 3-19/50 | 0.217 |
| HB BHP 59015 | 20.000 | 150 | 37/47 | 5-48/53 | 0.676 |
| HB BHP 59016 | 12.000 | 60.985 | 43/91 | 2-2/5 | 0.113 |
