Clevis Type Draw Pins
These draw pins are used with yoke type mountings.
Head Type

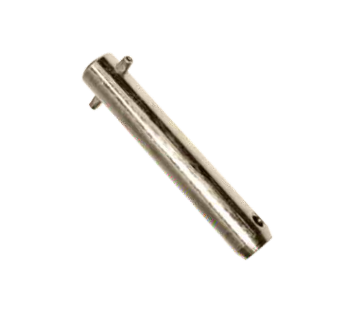

Roll Pin Type

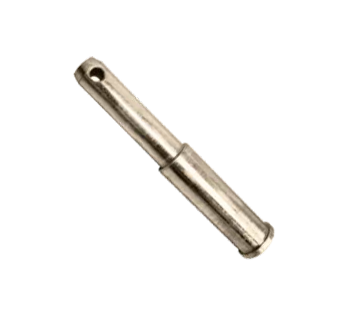

Head Type for Cat. 2 & 3
| Part No. | Cat. | Type | Pin Dia | Usable Length | Overall Length |
| HB CP 66001 | 1 | Roll Pin | 7/8" | 4-1/2" | 6" |
| HB CP 66002 | 2 | Roll Pin | 1-1/8" | 3-5/16" | 4-3/4" |
| HB CP 66003 | 2 | Roll Pin | 1-1/8" | 4-3/4" | 6-1/2" |
| HB CP 66004 | 2 | Roll Pin | 1-1/8" | 5-3/8" | 7" |
| HB CP 66005 | 2 | Roll Pin | 1-1/8" | 7-3/8" | 9" |
| HB CP 66006 | 2 | Roll Pin | 1-1/8" | 9" | 10-3/4" |
| HB CP 66007 | 3 | Head | 1-7/16" | 4-11/16" | 6" |
| HB CP 66008 | 3 | Roll Pin | 1-7/16" | 6-1/4" | 7-3/4" |
| HB CP 66009 | 2 & 3 | Head | 1-1/8" & 1-7/16" | 3-5/8" & 4-1/4" | 9-1/4" |
| HB CP 66010 | 2 | Head | 1-1/8" | 5" | 6" |
| HB CP 66011 | 1 & 2 | Head | 7/8" | 3-1/4" & 4-1/2" | 9-1/4" |
| HB CP 66012 | 1 | Head | 7/8" | 4" | 5-1/4" |
