MEASURING FOR THE PROPER BALL MOUNT
1. Measure from the ground to the top of the hitch.
2. Measure from the ground to the (inside) top of the trailer coupler, when level.
3. Subtract the height of the hitch ball (most are 2½ - 3-in high) from coupler measurement.
THE DIFFERENCE IN THE TWO MEASUREMENTS IS THE AMOUNT OF BALL MOUNT -"HOBO" OR -"DROP" REQUIRED.
Selecting The Right Ball Mount

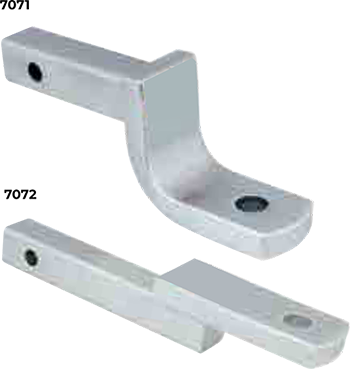

BRIGHT ZINC
STANDARD BALL MOUNTS
| Part No. | Finish | Drop | Box | Hitch Ball | Capacity |
| Opening | Hole Size | ||||
| HBM-7071 | ZINC | 1-1/4-in | 1-1/4-in | 3/4-in | 3500/300 lb |
| HBM-7072 | ZINC | 2-1/2-in | 1-1/4-in | 3/4-in | 3500/300 lb |

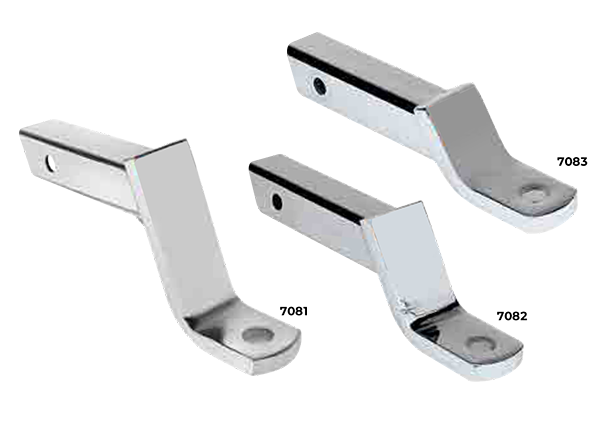

NICKEL CHROME
STANDARD BALL MOUNTS
| Part No. | Finish | Drop | Box | Hitch Ball | Capacity |
| Opening | Hole Size | ||||
| HBM-7081 | Chrome | 2-in | 2-in | 1-in | 6000/600 lb |
| HBM-7082 | Chrome | 3-1/4-in | 2-in | 1-in | 5000/500 lb |
| HBM-7083 | Chrome | 5-1/4-in | 2-in | 1-in | 5000/500 lb |
